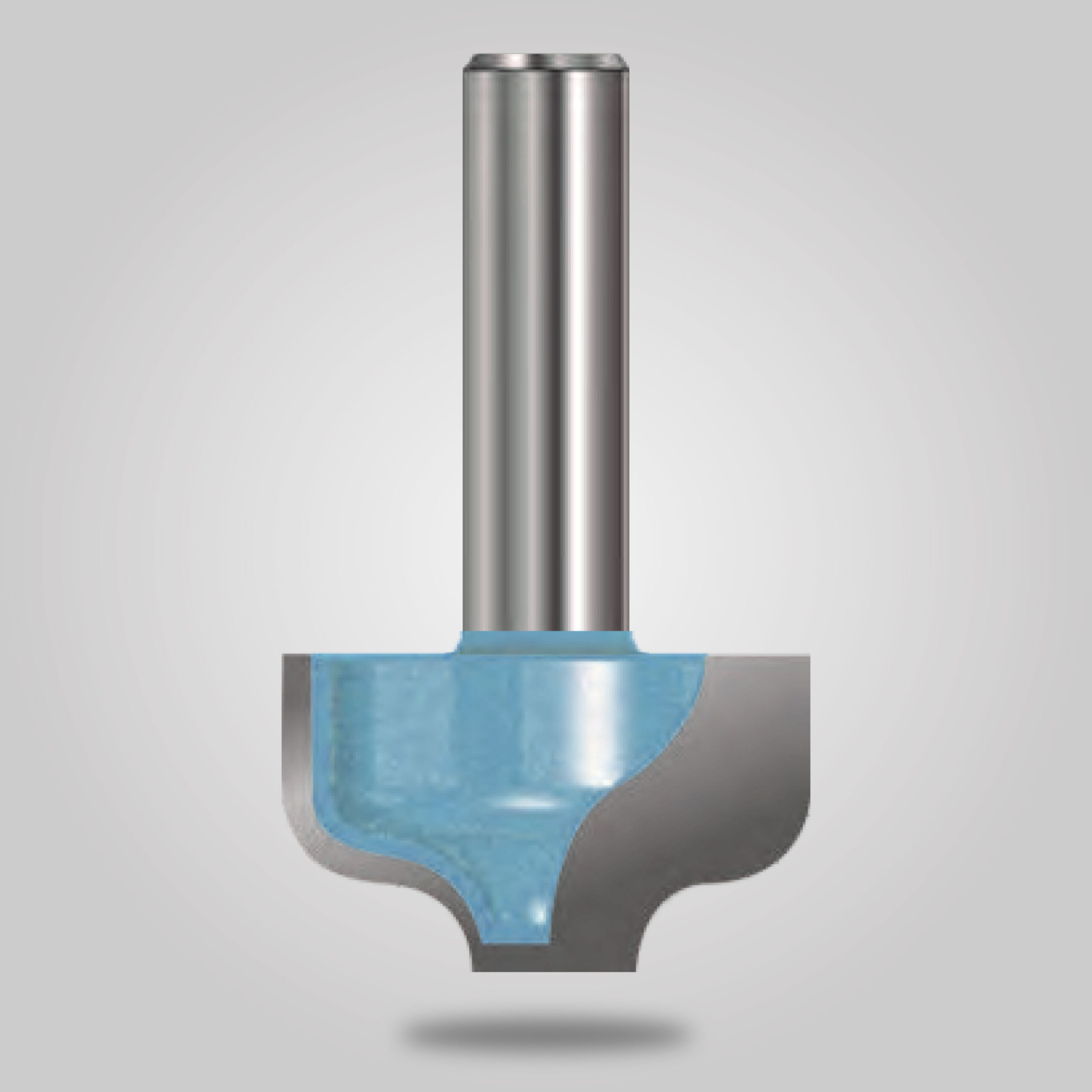

An ogee cutter, often referred to as an “OG cutter” or “TC” cutter, is a type of milling cutter used in machining operations. The term “OG” stands for “ogee,” which refers to a type of curve or shape, and “TC” could stand for various things depending on the context. It’s possible that “TC” in this context is a brand name or a specific designation for a type of ogee cutter. Ogee cutters are designed with a specific curved profile, typically used for creating decorative edges or contours on workpieces in woodworking and metalworking. The exact shape and dimensions of an ogee cutter can vary, but they are generally used for adding aesthetic details to the edges of materials.
| Shank S-6mm | Shank S-8mm | Shank S-12mm | Shank S-mm | Cutting Dimension D | Cutting Dimension D1 | Blade length BL | Angle Degree |
| BGOC6S-20101 | 6 | 12.7 | 4.76 | 9.5 | 2º | ||
| BGOC6S-20102 | 6 | 19.05 | 6.35 | 11.11 | 3.2º | ||
| BGOC6S-20103 | 6 | 25 | 11.11 | 3.2º | |||
| BGOC6S-20104 | 6 | 31.8 | 12.7 | 12.7 | 4.76º | ||
| BGOC8S-20105 | 8 | 12.7 | 4.76 | 9.5 | 2º | ||
| BGOC8S-20106 | 8 | 19.05 | 6.35 | 11.11 | 3.2º | ||
| BGOC8S-20107 | 8 | 31.8 | 12.7 | 12.7 | 4.76º | ||
| BGOC9S-20108 | 12 | 12.7 | 4.76 | 9.5 | 2º | ||
| BGOC9S-20109 | 12 | 19.05 | 6.35 | 11.11 | 3.2º | ||
| BGOC9S-20110 | 12 | 31.8 | 12.7 | 12.7 | 4.76º |
